LUMiFlector®
Determination and monitoring of product parameters
Inline & at-line analysis
Exceptional possibilities
THE LUMIFLECTOR® OFFERS THESE HIGHLIGHTS
- Broad range of applications
- Fast monitoring
- Automatic process control
- Efficient screening and QA
- No preparation of the sample
- No use of chemicals
- No direct contact of sensors with the product
- Easy to clean & easy to handle
- Self-training
- Low-maintenance
- Stable and robust system
LUMiFlector® – Fast inline monitoring
No direct contact of sensors with the product
The LUMiFlector® is a powerful measuring instrument for product parameter determination & monitoring. The innovative patented MRS-Technology® is the core of the instrument. It quantifies parameters of manifold products – no sample preparation, no chemicals. Application fields include food, feed, pharmaceutical, biotechnology products and medical nutrition and beyond
APPLICATION AREAS

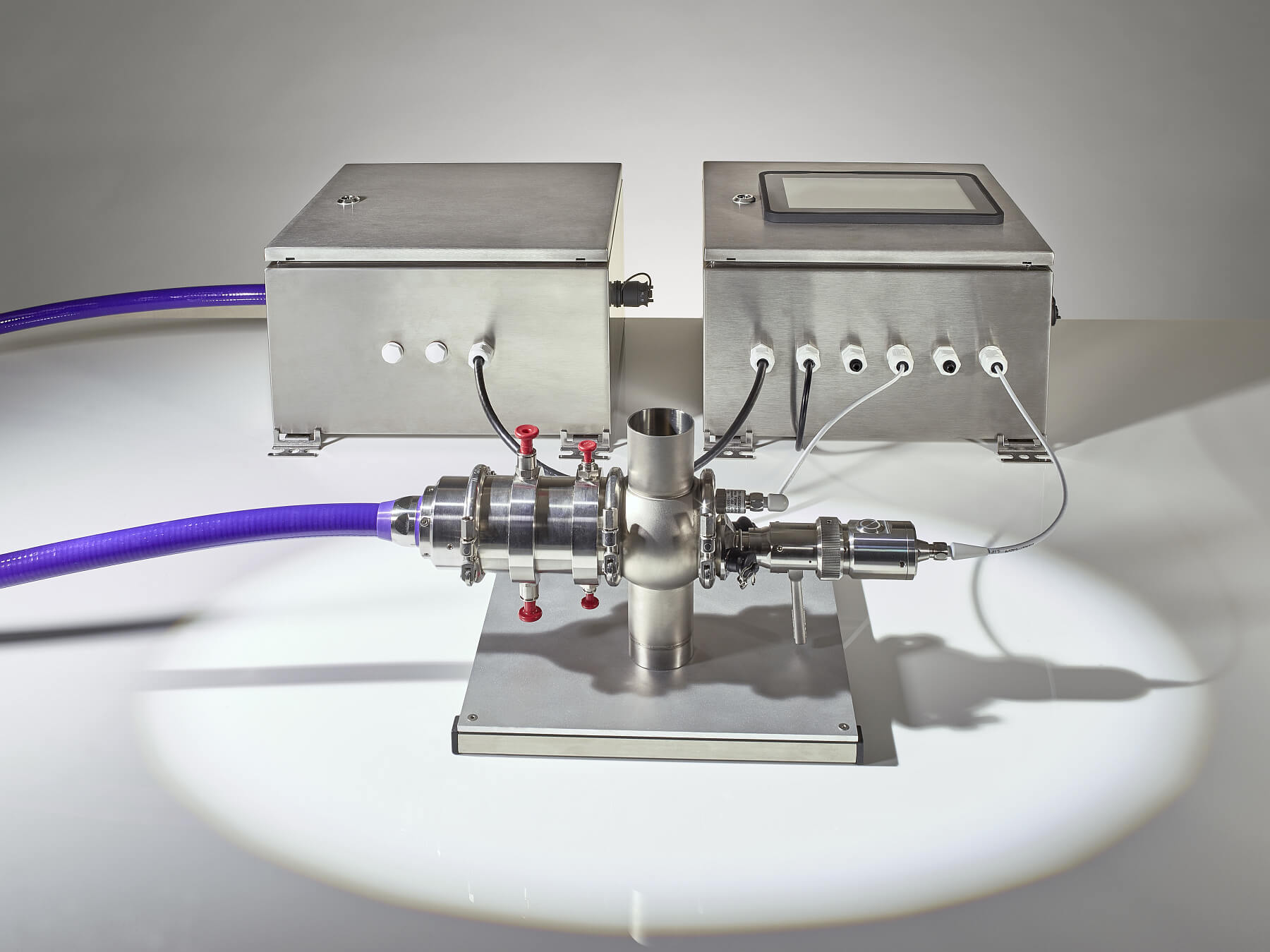

LUMiFlector® in-line in action
| Quantification of specification of products based on suspensions or emulsions Characterization of product properties resulting from dispersibility, homogenization, dilution Automatic production monitoring and control Process optimization Milk standardization Fast quality assessment Large variety of liquid and semi-liquid products, i. e. dairy products, enteral nutrition, feed products, starch, soybean products, cells, yeast, suspensions, beverages, spicy sauces, dips, ketchup, slurries Biotechnology Determination of product specifications: fat, protein & total solids |
Product version

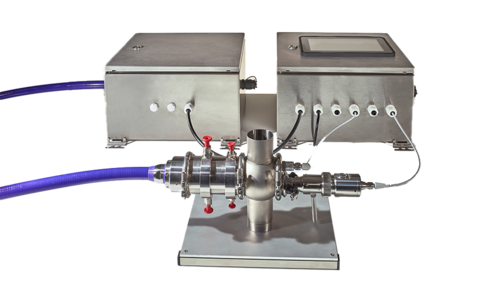

LUMiFlector In-Line
The Inline instrument is directly connected into the production line of your product in order to monitor the calibrated product parameters simultaneously.
The process interface is a standardized VARINLINE® housing, available in different pipe sizes and connection types, suitable for the measurement site. Connect the LUMiFlector® to your control room via industrial standard interface (analog signal , 4 -20 mA) for monitoring or controlling tasks.
Fast (< 20 s) and efficient long-term automatic monitoring and recording of product properties.
Download & Technical Data
Technical Data LUMiFlector®
| Measuring principle | Scattering, Refraction, Fluorescence |
| Measurement time | < 20 s |
| Quantities | concentration of dispersed solids and/or liquid particles; customer-defined values |
| Sample | |
| Type | Emulsions, Suspensions |
| Volume | 260 ml (smaller volumes for highly reflective samples, customized cups available) |
| Technical Data | |
| Light source(s) | UV-VIS-NIR |
| Measurement cup | Stainless steel |
| Calibrations (on-board) | UHT / ESL milk (fat, protein, total solids) |
| Ambient temperature | 10 to 35 °C |
| Product support | up to 8 products programmable, 4 measurement quantities per product |
| Dimensions (W x H x D) | (In-line) Sensor: 10 cm x 10 cm x 20 cm, 1.5 kg Spectrometer: 38 cm x 38 cm x 23 cm, 8 kg Industrial PC: 38 cm x 38 cm x 23 cm, 9 kg Process interface: VARINLINE®: DN 25-150 x 25 cm3, 1.5 kg (to be ordered separately) |
Individual advice is important to us
We will be happy to advise you on our equipment, processes and technologies.
